Τόπος καταγωγής: | ΚΙΝΑ |
---|---|
Μάρκα: | SAFEGAS |
Πιστοποίηση: | IECEX/ATEX/EMC/CE |
Αριθμό μοντέλου: | Μικρόμετα |
Ποσότητα παραγγελίας min: | 1 |
Τιμή: | διαπραγματεύσιμα |
Συσκευασία λεπτομέρειες: | Κουτί (22*16*11cm) |
Χρόνος παράδοσης: | 5-7 εργάσιμες ημέρες |
Όροι πληρωμής: | T/t |
Δυνατότητα προσφοράς: | 3000 τεμάχια το μήνα |
Μέθοδος εργασίας: | Διάχυση | Δοκιμή αυτόματα και βαθμονόμηση: | Συμπεριλαμβανομένης της αυτόματης δοκιμής, της βαθμονόμησης, της αυτόματης μηδέν, της μέγιστης τιμής |
---|---|---|---|
Μετά την εξουσία: | Ελάχιστη τιμή (min), stel, τιμή TWA | Καταγραφή δεδομένων: | 1000 σύνολα καταγραφών δεδομένων και 100 σύνολα καταγραφών γεγονότων |
Ασύρματο κιβώτιο ταχυτήτων:: | Λειτουργία μετάδοσης Bluetooth (Προαιρετική), Λειτουργία μετάδοσης Lora (προαιρετικά) | Μπαταρία: | 3.7V επαναφορτιζόμενη μπαταρία λιθίου, χωρητικότητα μπαταρίας 2300mA |
Βαθμός προστασίας: | IP66/IP68 | Βάρος: | 240g (με μπαταρία λιθίου) |
Επισημαίνω: | 24 Hours Battery Life Multi Gas Detector,Light Weight Portable Gas Detector,Small Size Diffusion Gas Detector |

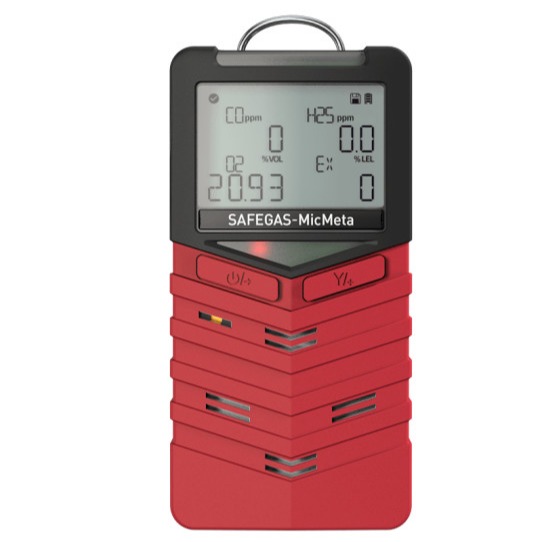

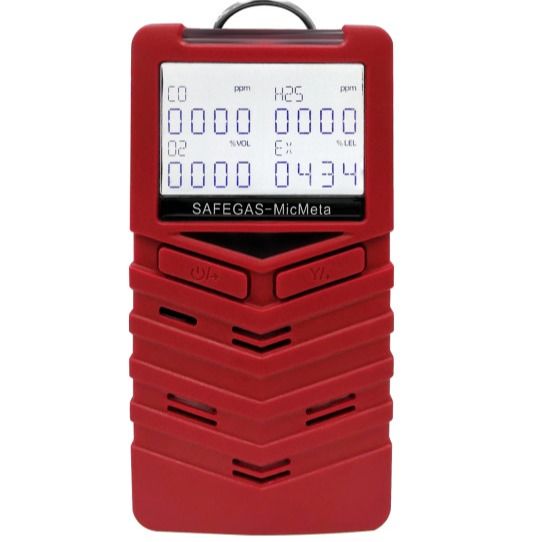

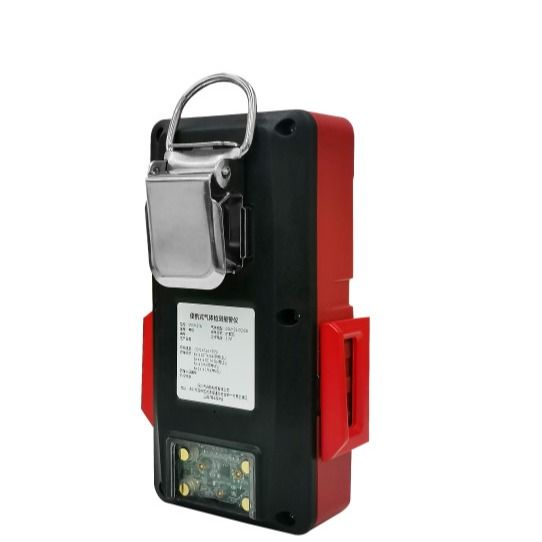

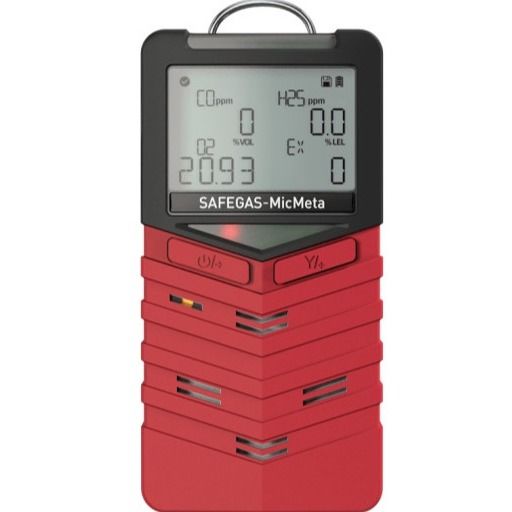

MicMeta is an IECEx/ATEX/EMC certified multi gas detector. It’s light weight, small size. The standard gas type is multi 4 (CO H2S O2 LEL) gases and also support hundreds of selectable gases. It is with standard mandown alarm and data logging function, optional Lora and Bluetooth wireless data transmission, user is able to access data easily.
Working method | Diffusion |
Gas type | Specified according to application |
Principle | Specified according to application |
Measure range | Specified according to application |
Resolution | Specified according to application |
Response time (T90) | ≤30S |
Automatically test and calibrate after power-on | Including auto-test, calibration, auto-zero, maximum value (MAX), minimum value (MIN), STEL, TWA value |
Unit | ppm, mg/m³ can be switched by one key, and the concentration value is automatically converted by the system |
Display | Segment code LCD display |
Calibration platform | Modification, function testing and calibration operations can be performed on DKM-MicMeta docking station (optional) |
Data Record | 1000 sets data records and 100 sets events records |
Alarm | 95dB buzzer (@30cm), vibration alarm and flashing red bars and alarm status indication on the screen, alarm latched; diagnostic alarm and battery under voltage alarm, man down alarm, alarm set points for all sensors are user adjustable |
Battery | 3.7V rechargeable lithium battery, battery capacity 2300mA |
Wireless transmission | Bluetooth transmission function (optional), Lora transmission function (optional) |
Working hours | Standby time 24h, charging time <6h |
Certification (EU regulations) | 2004/34/UE (ATEX) |
Explosion-proof grade | IECEx: Ex ia IIC T4 Ga, Ex ia I Ma, ATEX II 1G Ex ia IIC T4 Ga, Ex ia I Ma |
Protection grade | IP66/IP68 |
Working temperature | -20°C ~ 55°C |
Working humidity | 0-95%RH (non-condensing) |
Working pressure | 86~106Kpa |
Size | 45×58×116mm (length × width × height) |
Weight | 240g (with lithium battery) |
Established in 2010, Shenzhen Yuante Technology Co., Limited is a company that focuses on the design, production and sales of high-end gas detection equipment and system for 16 years. With gas detector as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic,Municipal Engineering, Agriculture and Forestry, Household Appliances, etc. Through about 10 years of rapid development, Yuante becomes the influential supplier.
For years, Yuante always insists on the management concept Market is orientation; Innovation is motivation; Quality to survival; Development to growth. With friendly, open and strict corporate culture and standardized management, Yuante gathers a lot of talents, and builds up the management team and R&D team. All the staff cooperates well in product development, production and maintenance, and has a deep understanding of the concept of customer oriented and has the service spirit through the company operation and management, to win the trust and support from customers.
The essence of a detector is the accuracy and faster response. Depending on years of measurement experience and unique solutions, through independent research and development, cooperative development and learning overseas latest technology, Yuante's products are advanced beyond the domestic brands and ahead of the global brands. We are seeking for development and progress constantly, and trying to meet diversified demands from customers.
1.Who are we?
We are based in Guangdong, China, start from 2010,sell to Southeast Asia(20.00%),North America(17.00%),South America(15.00%),South Asia(10.00%),Eastern Asia(10.00%),Mid East(10.00%),Central America(5.00%),Africa(3.00%),Oceania(2.00%),Western Europe(2.00%),Southern Europe(2.00%),Northern Europe(2.00%),Eastern Europe(2.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Portable Gas Detectors, Fixed Gas Detectors, Gas Analyzers, Multi Gas Detectors
4. Why should you buy from us not from other suppliers?
We have independent dust-free production workshop, modern production equipment, and professional staff. We implement flexible and competitive price and diversified sales strategy. We provide 24h/day service to users, rapid in response, technical guidance.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,Western Union;
Language Spoken:English,Chinese
