Portable Multi Gas Analyzer 18 In 1
Customized flue gas detector for comprehensive air quality analysis
Product Overview
The SKY8000 is a versatile portable gas analysis instrument designed for industrial waste gas monitoring, air pollution source emission detection, boiler flue gas analysis, automobile exhaust testing, and indoor air quality assessment. This analytical instrument offers flexible detection capabilities for 1-18 different gases with modular design options.
Key features include:
- 1-3 selectable modules, each with dedicated pump system
- Modular internal structure with separate air intake to prevent cross-gas interference
- 3.5-inch high-definition IPS LCD color screen with 150° wide viewing angle
- Bilingual Chinese/English operation interface
- Enhanced safety features including fall alarm, password protection, and safety reminders
- Optional high-temperature probe for harsh environments
- Long-lasting large-capacity lithium battery
- High-strength engineering material casing with ergonomic design
Product Advantages
- Sleek exterior design with 3.5-inch high-definition color screen
- Modular internal structure for easy maintenance
- High customizability to meet specific requirements
- Flexible multi-pump system for accurate sampling
- Multiple display modes for comprehensive data visualization
- Extensive data storage capabilities
- Comprehensive security protection features
- User-friendly operation with enhanced functionality

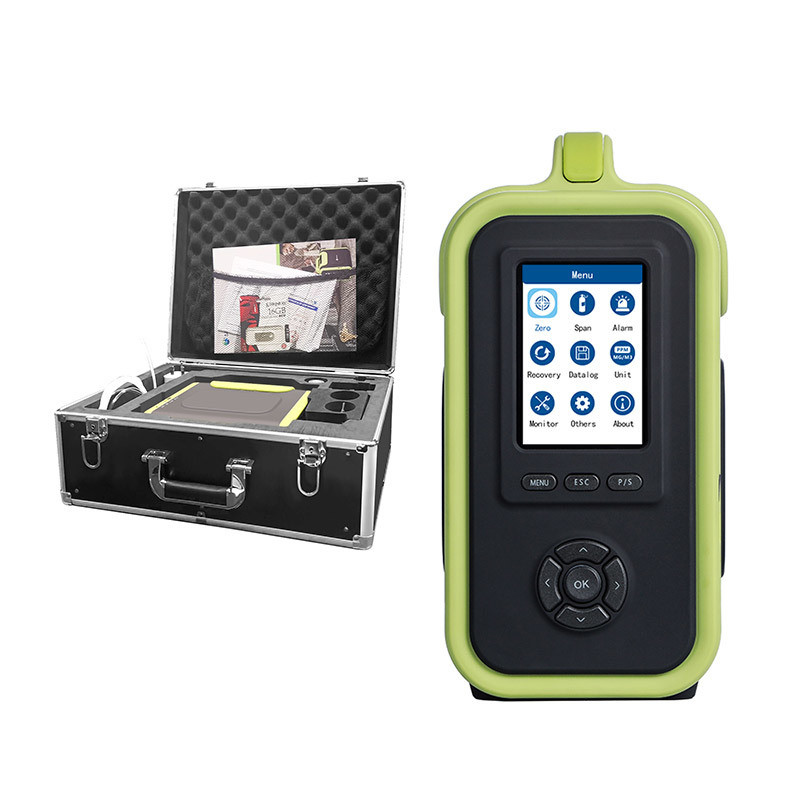

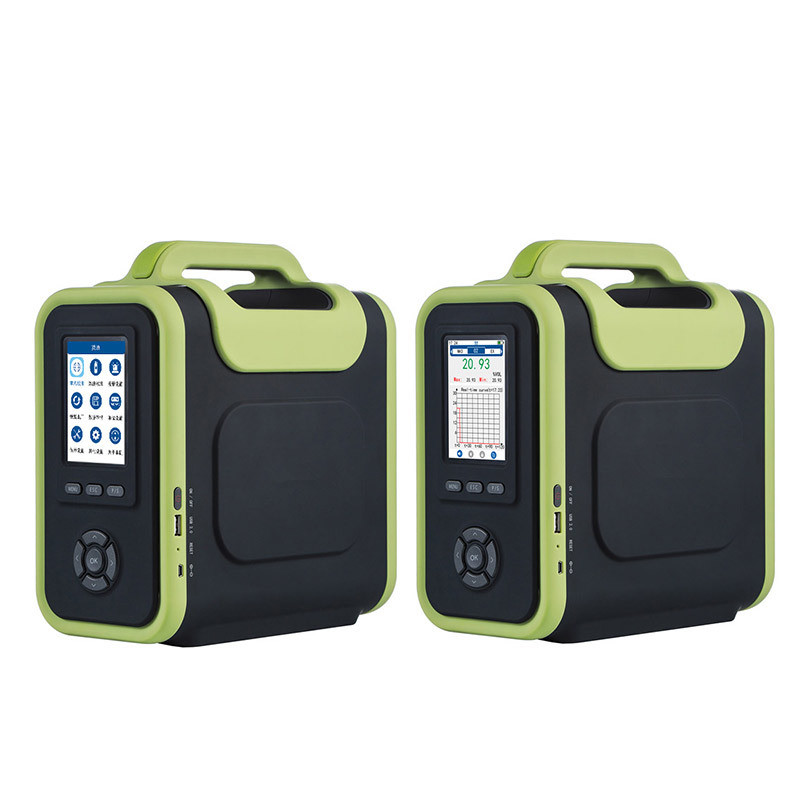

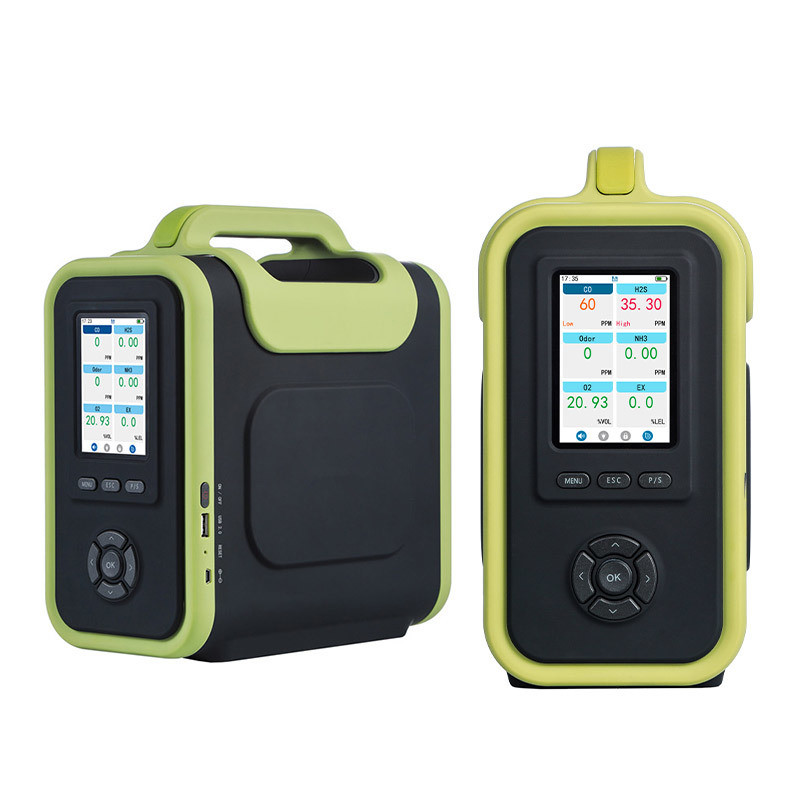

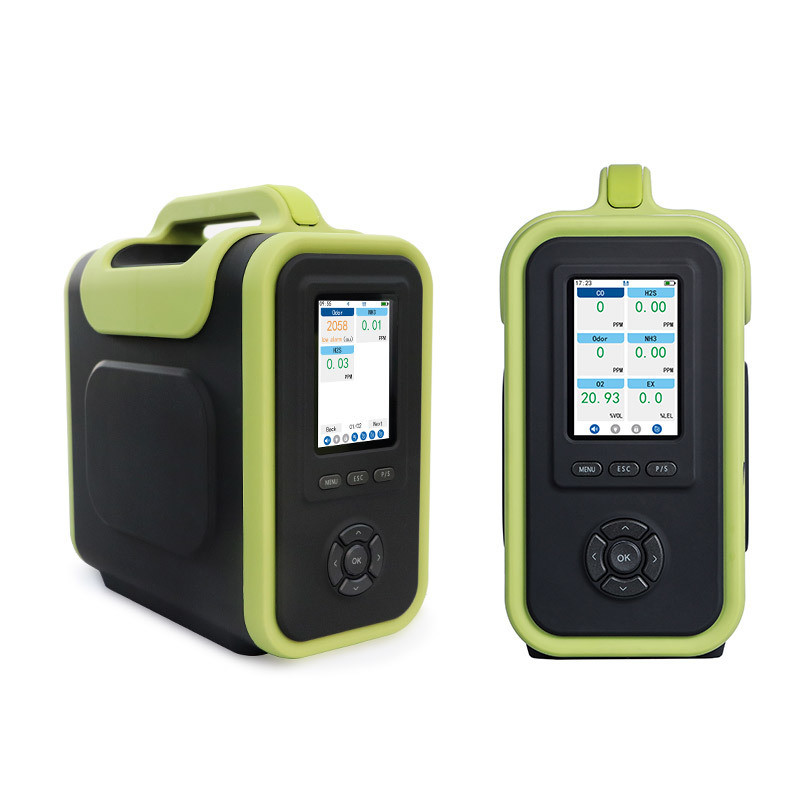

Product Images
Technical Specifications
| Sensors |
PID / Electrochemistry / Infrared Ray / Catalyze |
| Gas Detection |
Customizable, detects up to 18 gases |
| Measurement Range |
Customizable based on application requirements |
| Resolution |
Customizable for precision measurement |
| Display |
Formula, gas concentration data, measurement trend curve, gas curve, battery status, time, temperature, humidity, pressure (optional), pump condition, wireless status, printer status, screenshot status |
| Alarm System |
Buzzer, red LED indicator, alarm status display, fault alarm, pump abnormal alarm, low battery alarm |
| Data Storage |
Independent SD memory card, maximum 32GB capacity, automatic measurement data recording with customizable time intervals |
| Data Transmission |
RS485 signal output, USB interface data transmission, compatible with upper computer software for data download, analysis, and printing |
| Print Function (Optional) |
Internal portable printer or external Bluetooth printer |
| Print Content (Optional) |
Text, graphics, barcode, QR code, curves, characters, etc. |
| Charging |
Standard Mini-USB charging port with 13V/2A special charger (built-in printer) or 5V/2A universal charger (external printer) |
| Language |
Chinese / English |
| Wireless Network (Optional) |
Bluetooth connectivity |
| Network Frequency |
2.4G high frequency |
| Wireless Transmission Distance |
Bluetooth range less than 10 meters |
| Probe Specifications |
High-temperature probe required for flue gas environments, resistant to 600°C or 1000°C temperatures. Available lengths: 0.3m, 0.7m, and 1m. |
Detectable Gases
SKY8000 series can detect 1-18 gases with customizable configurations:
Applications
Chemical Industry
Environmental Monitoring
Healthcare Applications
Automotive Industry
Industrial Safety
Wastewater Treatment
Greenhouse Gas Monitoring
Oil and Gas Exploration
Food and Beverage Production
Mining and Mining Operations
Standard Accessories
- User manual
- Certificate/warranty card
- 8G large capacity SD card (higher capacity available upon request)
- Charging adapter
- Water trap filter
- Intake sampling probe
- 1000mm sampling hose
- Professional carrying case (non-toxic, odorless, explosion-proof, waterproof, heat-resistant, high-low temperature resistant, corrosion-resistant)
Optional Accessories
- Built-in thermal printer
- High temperature probe set
Why Choose Us?
- R&D team with over 25 years of experience
- Company certifications: ISO9001, ISO45001
- Product certifications: IECEx (the only one in China), ATEX, CE
- Fast delivery: 5-7 days
- High production capacity: 80,000 units annually
- Professional 24/7 customer service
Company Profile
Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production, and sales of gas detection equipment and systems for 16 years. With gas detectors as our core product, we provide complete production lines and solutions for various industries including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.
Product Line
Our comprehensive product range includes:
- Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000
- Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200
- Controller panels: YT-1100H, YT-1600H
Certifications
Our products hold international certifications including IECEX, ATEX, CE, TEST Report, ISO 9001, and ISO 45001. We are the only company in China with IECEX certification, ensuring product quality comparable to international brands like Honeywell, MSA, and RAE, but with competitive pricing.
Our Clients
We proudly serve major international companies including Huawei, Coca-Cola, Samsung, Nestlé, and many others.
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a professional manufacturer specializing in gas detectors for more than 10 years.
What is the minimum order quantity (MOQ)?
Typically 1 piece.
How about the quality of your products?
Our products use imported sensors and components and are fully certified for quality assurance.
How long is the warranty period?
The warranty period is 1 year from factory date, with lifetime maintenance support.
Do you offer guarantee for the products?
Yes, we offer a one-year guarantee for all products.
Can you produce according to customers' design?
Yes, as a factory with our own R&D team, we offer comprehensive customization including color schemes, special functions, packaging design, and multi-language support.
Is it OK to print my logo on the gas detector?
Yes, please inform us formally before production and confirm the design based on our sample.
How do you ensure the quality of products?
Our company owns core technology and all products hold qualification certificates to guarantee quality standards.
