YT-98H Fixed Gas Detector
Product Overview
YT-98H-D/YT-98H-D-A series is a fixed single & multi gas detector. It is able detect 1-6 kinds of gases simultaneously and continuously. With IECEx, ATEX certified and noncontact magnetic wand design, it can be installed and operated in hazardous areas. It supports 3-wire 4-20mA, RS485 Modbus, relay and optional Hart signal output, making it compatible with most control systems. With optional wireless data transmission so user can view real time data on laptop, mobile phone remotely.
Product Advantage
- Up to 6 kinds of gases can be detected simultaneously. In complex and multi-gas environments, it is able to saving installation time and effort
- 2.4-inch industrial-grade high-definition color screen with a resolution of 320*240 and a wide viewing angle of 120 degrees
- With wireless communicate function, uploading data to cloud platform so user is able to check and download data remotely. There is also SMS and E-mail alarm alert function in real time. (optional)
- With manually span and zero calibration function, making gas monitoring more accurate and more reliable.
- Standard 4-20mA analog signal, RS485 modbus signal and relay signal output, optional HART output.
- Standard infrared remote control, optional non-contact magnetic wand control.
- With sound and light alarm function, there is sound and light alarm when reaching the alarm point. (optional)
- With fault alarm, will send alarm when sensor disconnect.
- IP66 protection grade, water proof and dust proof
Technical parameters
| Gas Detected: |
VOC, O2, LEL, Toxic gases, etc |
| Detection Principle: |
PID, Electrochemical, IR, catalytic combustion, etc |
| Measure range: |
To be specified |
| Resolution: |
To be specified |
| Accuracy: |
≤±2%FS (depending on the specific sensor) |
| Response time (T90): |
20s (depending on the specific sensor) |
| Repeatability: |
≤±1% |
| Pump flow: |
0.5 L/Min |
| Zero shift: |
≤±1%(F.S./year) |
| Display: |
2.4-inch color display, resolution 320*240 |
| Display content: |
gas molecular formula, concentration, unit, pump status, etc |
| Alarm (Optional): |
buzzer, alarm status prompt on the display screen, high and low alarm values can be set by customer |
| Language: |
Chinese and English |
| Communication and data download: |
With PC software, history data can be downloaded, stored, printed, and analyzed in computer (optional) |
| Temperature: |
–10℃~55℃ |
| Humidity: |
0-95%RH (no condensation) |
| Case: |
Die-cast aluminum |
| Power: |
12-24V DC |
| Dimensions: |
286*202*96mm (H x W x D) |
| Weight: |
3.4kg (3.8kg with alarm light) |
| Explosionproof grade: |
Ex d IIC T6 Gb |

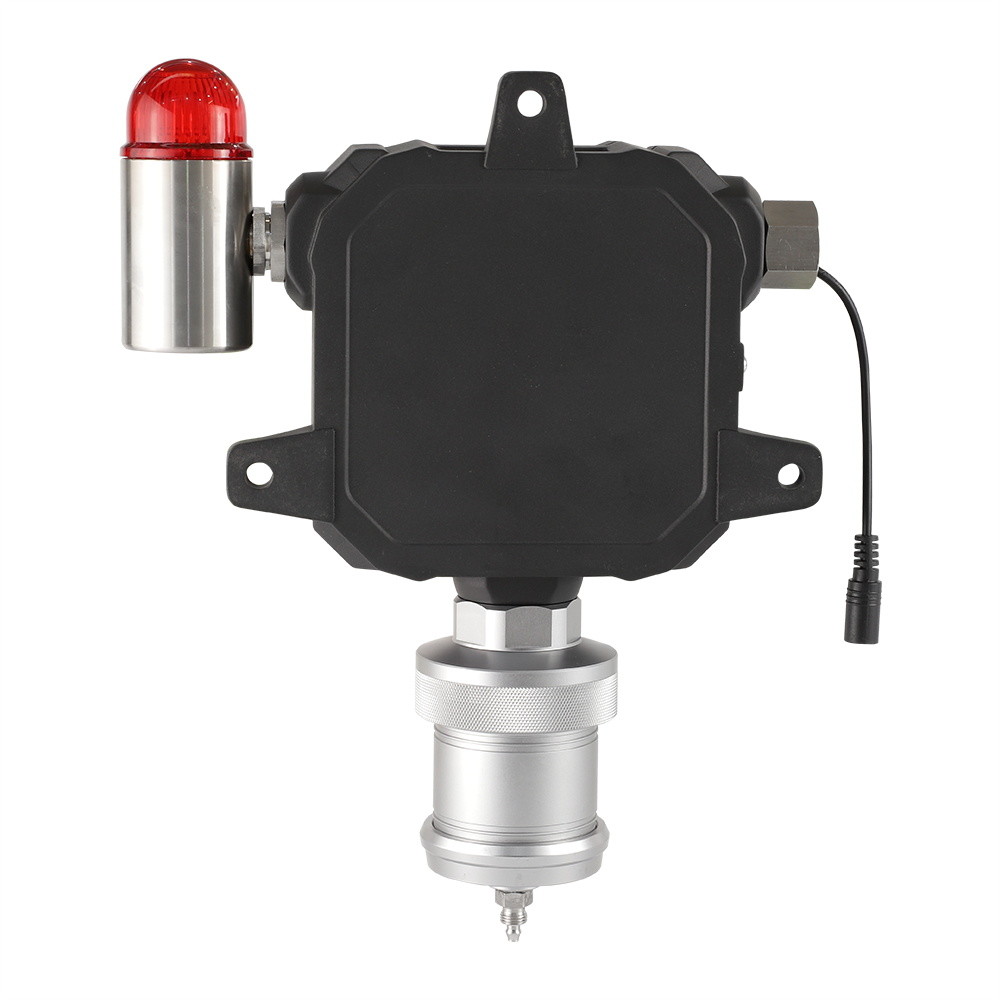

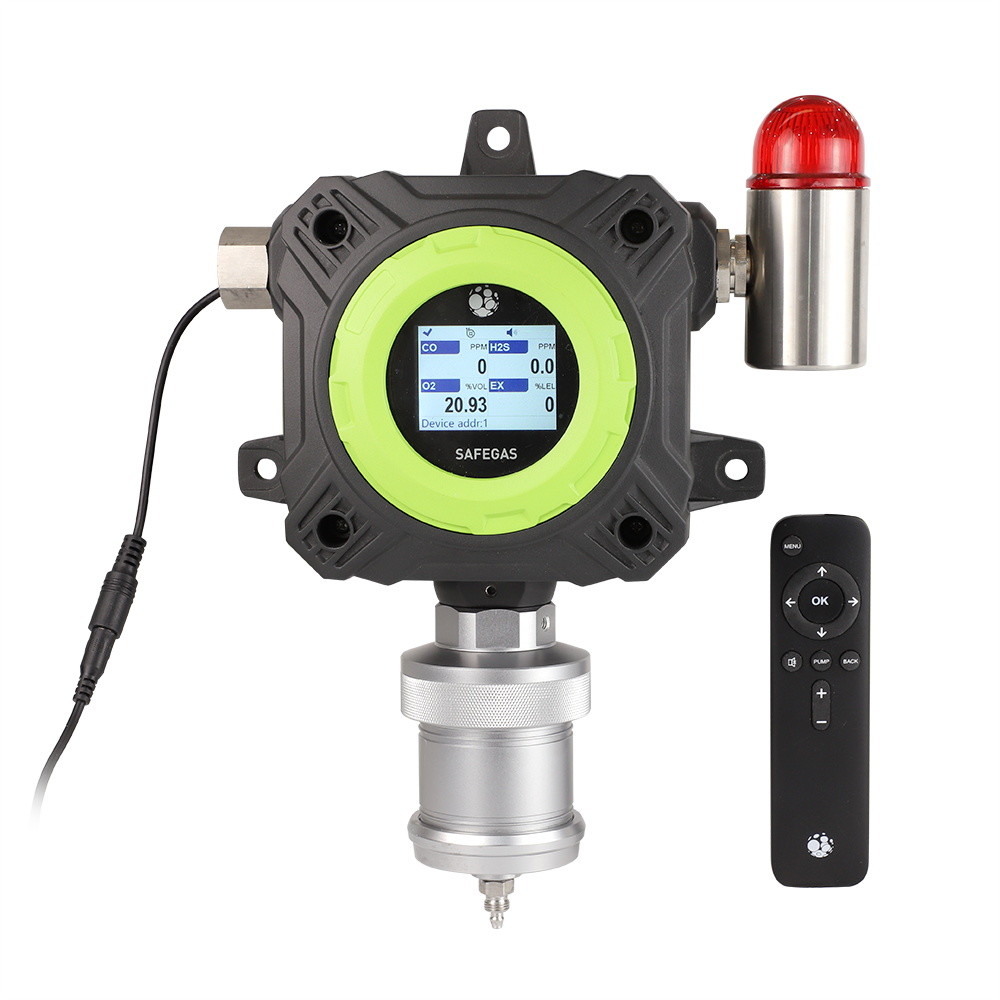

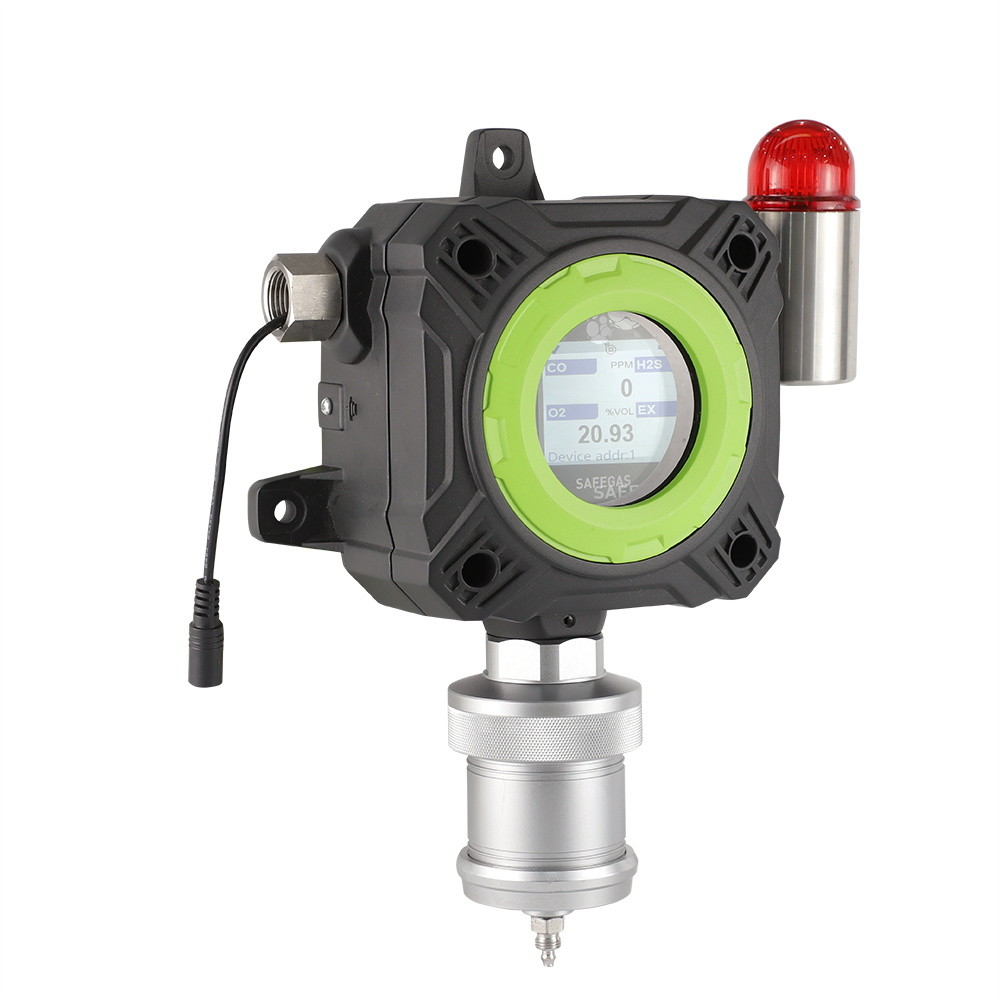

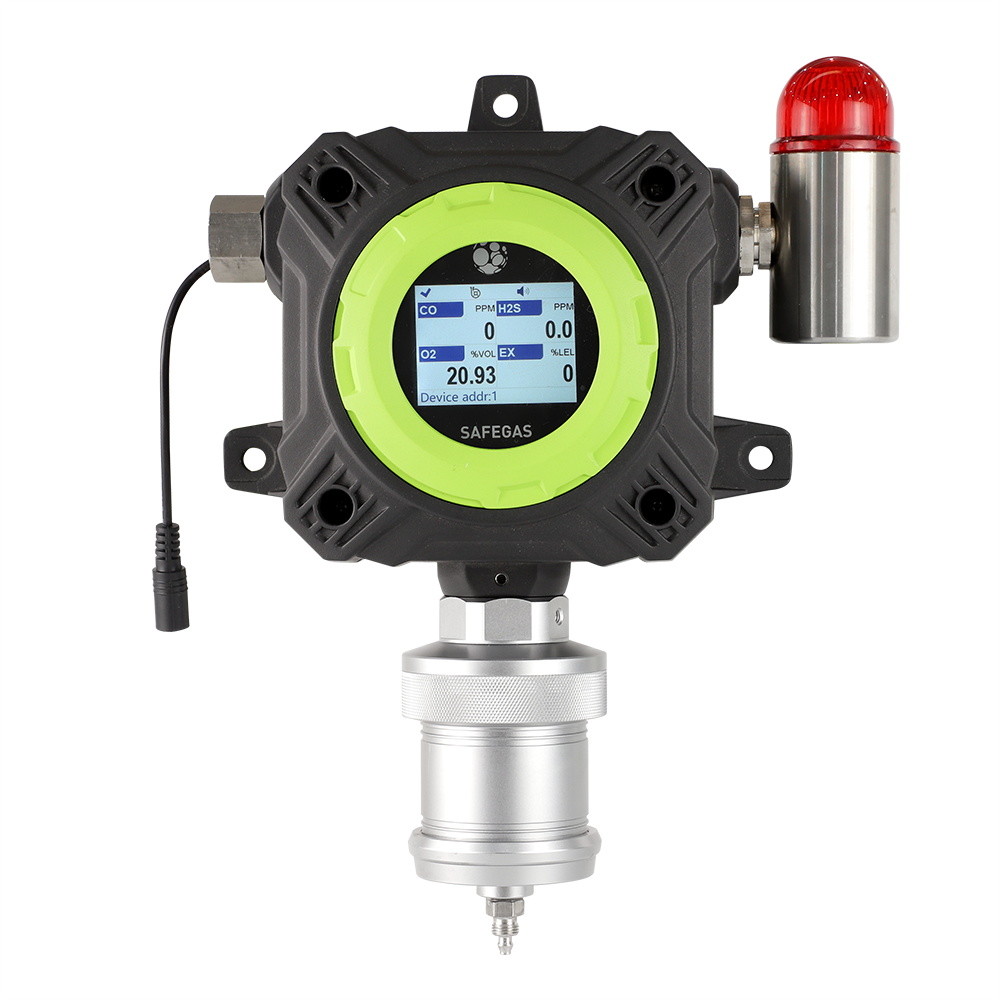

Product Images
Gas Detection Capabilities
Company Profile
Established in 2010, Shenzhen Yuante Technology Co., Limited specializes in the design, production, and sales of high-end gas detection equipment and systems for 16 years. With gas detectors as our core product, we offer complete production lines and solutions tailored to various industries including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.
Through rapid development over the past decade, Yuante has become an influential supplier in the industry. We adhere to the management philosophy: "Market is orientation; Innovation is motivation; Quality to survival; Development to growth."
With a friendly, open, and strict corporate culture, we've assembled talented teams in management and R&D. Our staff collaborates effectively in product development, production, and maintenance, embodying our customer-oriented philosophy to earn client trust and support.
The essence of a detector is accuracy and faster response. Leveraging years of measurement experience and unique solutions, through independent R&D and learning overseas technologies, our products surpass domestic brands and compete with global leaders. We continuously seek development to meet diverse customer demands.
R&D Team
Product Line
Certifications
Cooperated Clients
FAQ
1. Who are we?
We are based in Guangdong, China, established in 2010. Our primary markets include Southeast Asia (20%), North America (17%), South America (15%), South Asia (10%), Eastern Asia (10%), Mid East (10%), with smaller percentages in other global regions. Our office employs 51-100 people.
2. How can we guarantee quality?
- Always conduct pre-production sampling before mass production
- Always perform final inspection before shipment
3. What can you buy from us?
Portable Gas Detectors, Fixed Gas Detectors, Gas Analyzers, Multi Gas Detectors
4. Why should you buy from us not from other suppliers?
We have an independent dust-free production workshop, modern equipment, and professional staff. We offer competitive pricing and diversified sales strategies. Our 24/7 service provides rapid response and technical guidance.
5. What services can we provide?
- Delivery Terms: FOB, CIF, EXW, Express Delivery
- Payment Currency: USD, CNY
- Payment Methods: T/T, Western Union
- Languages: English, Chinese
