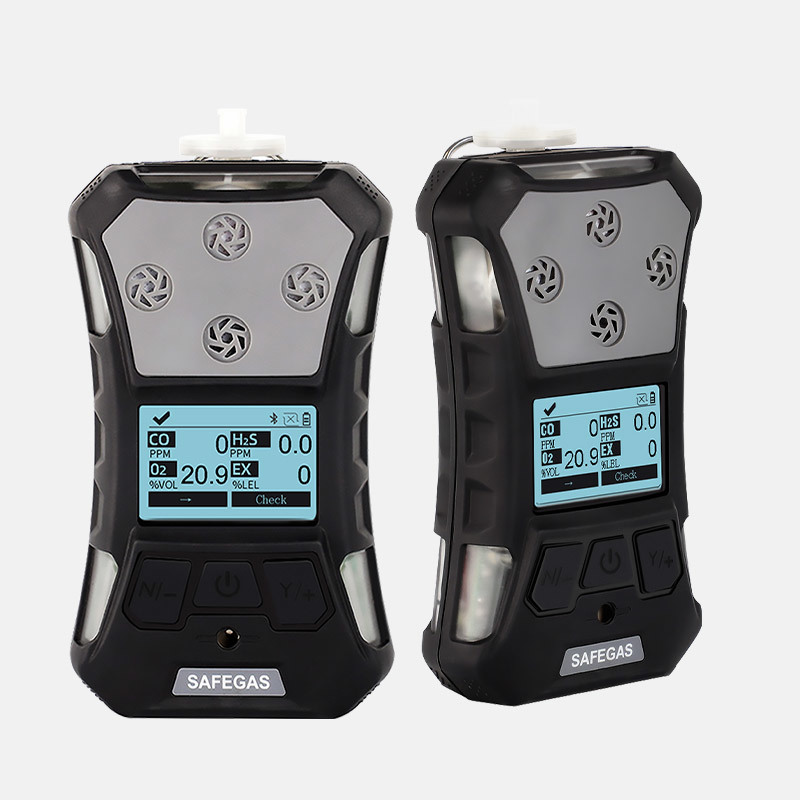

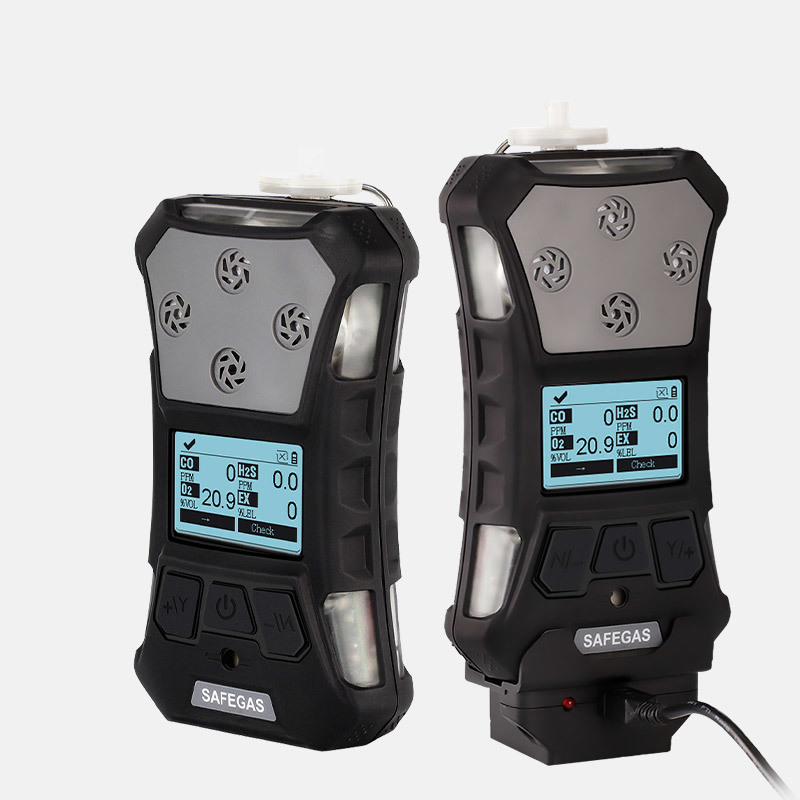

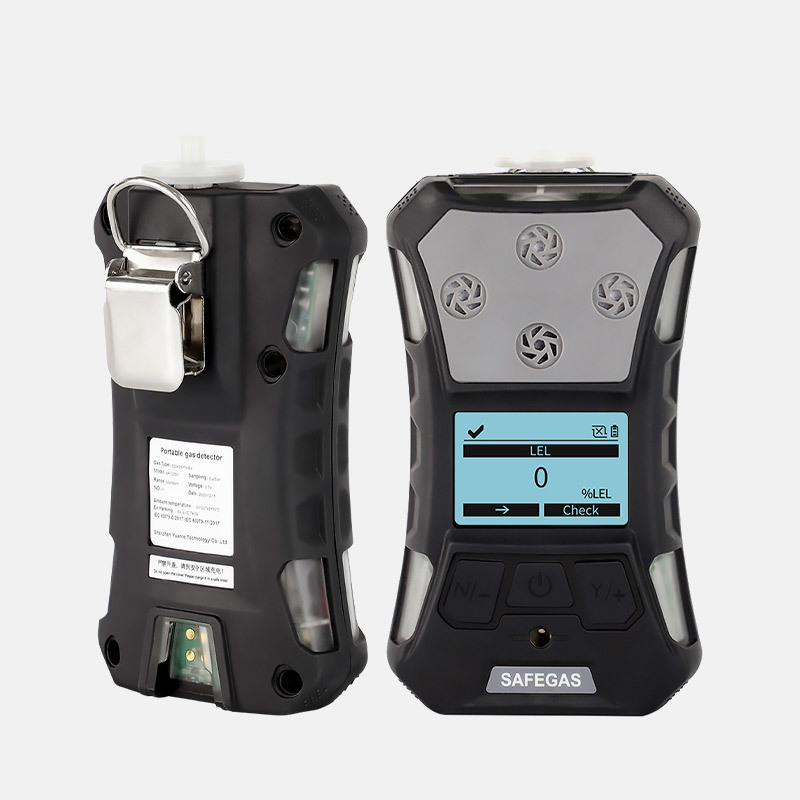

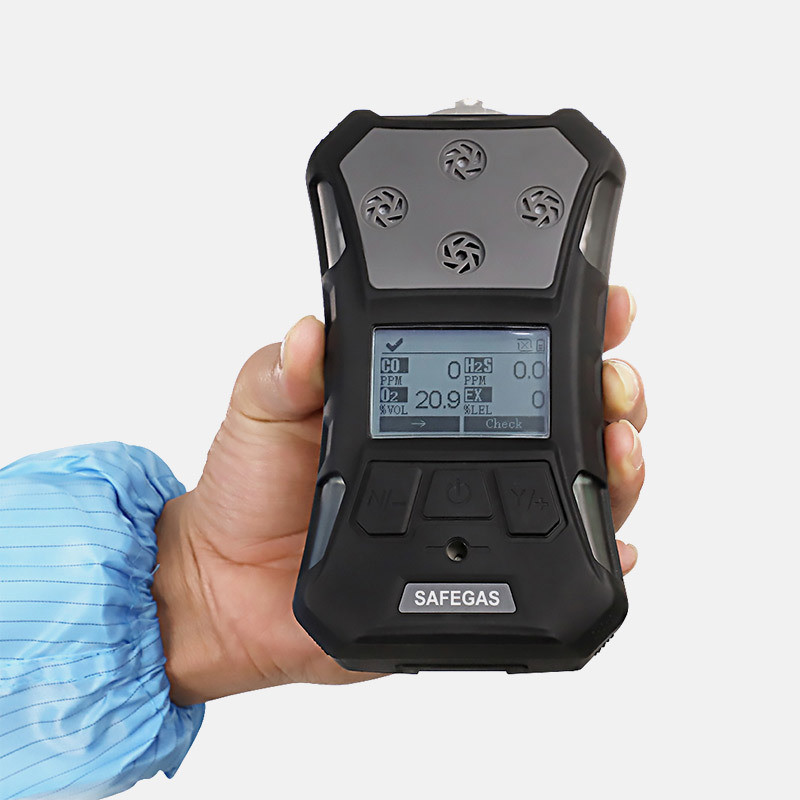

Portable Multi Gas Detector with 15 Hours Continuous Operation IECEx and ATEX Certificate

The SKY3000 series is a high-performance portable gas detector capable of simultaneously detecting multiple gases (Oxygen compounds VOC, combustible gas and toxic gas) with man down alarm functionality. The device features user-friendly operation including one-key security detection, one-key storage, automatic screen rotation, and man down alarm. Optional Bluetooth transmission allows safety personnel to monitor real-time data and alarm status.

Certified with international IECEX, ATEX explosion-proof standards and Chinese explosion-proof certification, the detector features IP67 protection rating and passed antistatic tests. Its modular design enables faster detection while the compact ergonomic design ensures easy portability. The instrument primarily operates in suction mode with automatic switch to diffusion sampling during pump failure or emergencies for enhanced protection.

The SKY3000 series carries an explosion-proof rating of Ex ia IIC T4 Ga, suitable for explosive gas mixture zones 0, 1, and 2 in industrial environments with grades ⅡA, ⅡB, and ⅡC and temperature groups T1~T4.

• Withstands 3-meter drops
• IP67 protection rating
• Passed EMC anti-static interference tests for reliable operation in walkie-talkie environments

• Certified with IECEX, ATEX, and Chinese explosion-proof standards
• Explosion-proof level reaches Exia IICT4 Ga

• Man down alarm enhances safety for underground operators
• Password protection prevents unauthorized parameter changes
• Safety reminders with sound, light, and vibration alarms

• Detects 1-4 gases simultaneously
• Displays real-time values, TWA, STEL, MAX, MIN measurements

• 180° auto-rotating screen for versatile viewing
• Powerful built-in sampling pump for fast detection
• Supports 20m external sampling tubes for confined space detection
• Dual pump suction and diffusion modes
• Water trap filter removes water, oil, dust for harsh environments

• Intuitive user interface with easy navigation
• Optional Bluetooth for real-time data transmission
• One-click data export for analysis
• Customizable ID for instrument management
• Automatic detection for voltage, pump failure alerts
• One-key security detection
• PPM and mg/m3 unit conversion
• Individual sensor factory reset
• Multi-language support (English, Chinese, etc.)

• Gas detector (1 piece)
• 12V/1A DC power adapter (1 piece)
• USB cable (1 piece)
• User manual (1 piece)
• Warranty card (1 piece)
• Filter (1 piece)
• Aluminum suitcase (1 piece)
•


Gas Detected

To be specified

Detection Principle

To be specified

Measure range

Specified according to application.

Resolution

Specified according to application.

Response time

≤20 seconds

Precision

≤±1-5%F.S except for special gases

Language

Chinese/English/Russian/Polish (More language can be customized)

Automatically test and calibrate after power-on

Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value

Unit

PPM, mg/m³, %LEL, %VOL

Display

LCD (160 x 96), 180° rotate

Backlight

Turned on automatically when alarming, the backlight time can be manually set

Data record

100,000 readings, the storage interval is adjustable from 5 to 3600 seconds, data can be exported to PC no need software

Alarm

95dB@30cm buzzer alarm, flashing red LED alarm and vibration alarm. Alarm status indication on the screen, alarm latched; diagnostic alarm and battery under-voltage alarm, pump failure alarm; man down alarm

Battery

3.7V rechargeable lithium battery, battery capacity 2200mA

Working hours

More than 15 hours in continuous pumping mode

Charger

Travel charger with DC interface, charging time ≥ 4 hours

Working temperature

-20℃~+50℃

Explosion-proof grade

IECEx: Ex ia IIC T4 Ga; ATEX: II 1G Ex ia IIC T4 Ga

Humidity

10~90%RH (no condensation)

Certification (EU regulations)

2004/34/UE (ATEX)

Protection grade

IP67

Environmental pressure

86~106Kpa

Size

157×84.5×59.5mm (including back clip/water trap filter) (length × width × height)

Weight

365g (including battery, belt clip and filter)
