Safegas Portable Gas Analyzer with Modular Internal Structure High Customizability and Multiple Security Protection for Flue Gas Detection

Βασικές πληροφορίες
Τόπος καταγωγής: Κίνα
Μάρκα: SAFEGAS
Πιστοποίηση: Chinese EX certificate
Αριθμό μοντέλου: Ουρανός8000
Ποσότητα παραγγελίας min: 1
Τιμή: διαπραγματεύσιμα
Συσκευασία λεπτομέρειες: Χαρτοκιβώτιο
Χρόνος παράδοσης: 10 εργάσιμες ημέρες
Όροι πληρωμής: T/T, Western Union
Δυνατότητα προσφοράς: 300 τεμάχια το μήνα
Λεπτομερής ενημέρωση
Ανίχνευση αερίου: SO2 CO2 CO2 NOX VOC Μέθοδος δειγματοληψίας: Αναρρόφηση άντλησης
Χρώμα: Μαύρο με Πράσινο Εξουσία: Μπαταρία πολυμερών λιθίου
βάρος: 3700g Υγρασία: 0~95% RH (χωρίς συμπύκνωση)
Θερμοκρασία: -20℃~+50℃ Εγγύηση: 12 μηνών
Προδιαγραφές ανίχνευσης: Απαιτείται, επιλέξτε σύμφωνα με το μήκος θερμοκρασίας και ανιχνευτή Λειτουργία εκτύπωσης: Προαιρετικό με εσωτερικό φορητό εκτυπωτή ή εξωτερικό εκτυπωτή Bluetooth

Περιγραφή προϊόντων

Safegas Portable Gas Analyzer Suitable For Coal Combustion Flue Gas Detection SO2 CO CO2 NOX VOC Detector
Product Overview
The SKY8000 is a portable gas analysis instrument widely used in industrial waste gas, air pollution source emission detection, boiler flue gas, automobile exhaust gas, and indoor air analysis applications. This analytical instrument can flexibly detect 1-18 types of gases with 1-3 selectable modules. Each module corresponds to one pump, and the internal modular structure allows separate air intake for disturbing gases, effectively avoiding cross-interference between gases.
Features include a 3.5-inch high-definition IPS LCD color screen with 150-degree wide viewing angle, Chinese and English operation interfaces, fall alarm, password protection, and safety reminder functions. Optional high-temperature probes can monitor gas concentration in harsh high-temperature and high-humidity environments. The large-capacity lithium battery provides long standby time, and the instrument casing is made of high-strength engineering materials with unique shape design and practical ergonomic operation.
Product Specifications
Sensors Electrochemical (CO, SO2, NOX), Infrared (CO2), PID photo ion principle (VOC)
Gas Detected CO, SO2, NOX, CO2, VOC
Measure Range CO 0-20000PPM; CO2 0~20%VOL; SO2 0~5000PPM; NOX 0~5000PPM; VOC 0~5000PPM
Resolution CO 1PPM; CO2 0.001%VOL; SO2 1PPM; NOX 1PPM; VOC 1PPM
Display Formula, gas concentration data, measurement trend curve, gas curve, battery, time, temperature, humidity, pressure (optional), pump condition, wireless status, printer status, screen shot status
Alarm Buzzer, red LED and alarm status on display, fault alarm, pump abnormal alarm, low battery alarm
Data Storage Independent SD memory card, Max.32G, automatic measurement data recording with customizable time intervals
Data Transmission RS485 signal output, USB interface data transmission, compatible with upper computer software for data download, analysis and printing
Print Function (Optional) Optional internal portable printer or external Bluetooth printer
Print Content (Optional) Text, graphics, barcode, QR code, curves, characters, etc.
Charger Standard Mini-USB charging port with 13V/2A special charger (built-in printer) or 5V/2A universal charger (external printer)
Language Chinese/English
Wireless Network (Optional) Bluetooth
Network Frequency 2.4G high frequency
Wireless Transmission Distance Bluetooth less than 10m
Probe Specifications The smoke environment must be equipped with a high temperature probe gun, resistant to high temperatures of 600°C or 1000°C. Probe lengths available: 0.3m, 0.7m and 1m.
Product Advantages

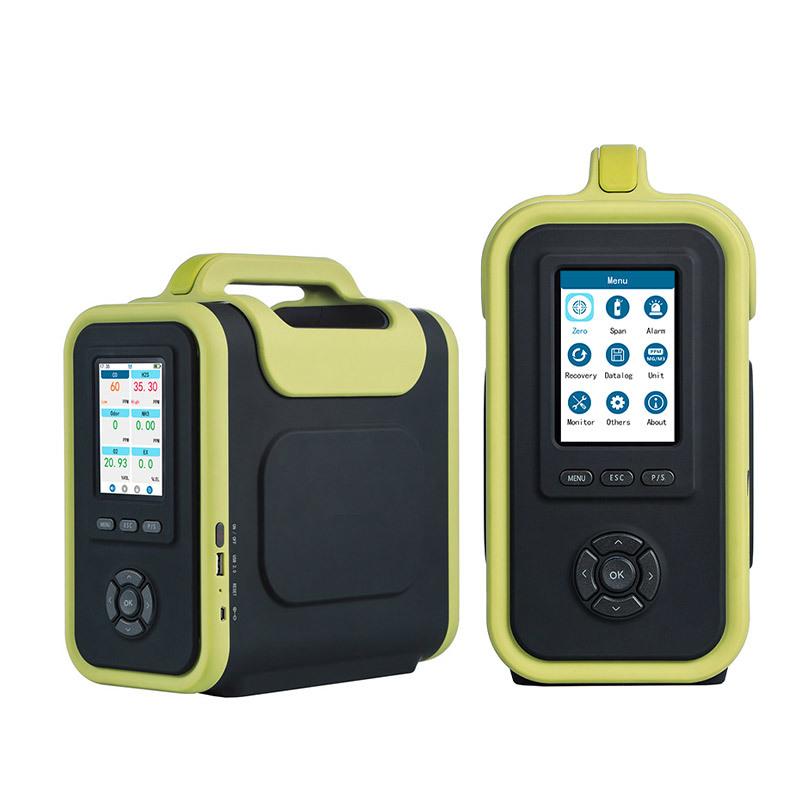

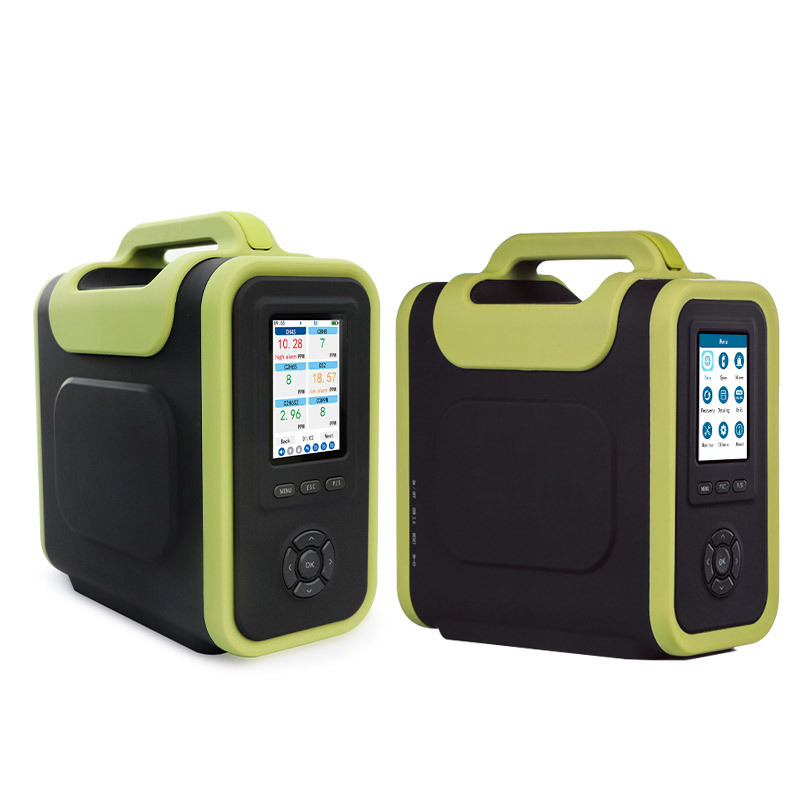

Exterior Design & Display
Convenient carrying handle design with stylish, heavy-duty aviation wear-resistant materials. Features a 3.5-inch high-definition color screen with high resolution and wide viewing angle. Beautiful and user-friendly interface with intuitive interactive operation.

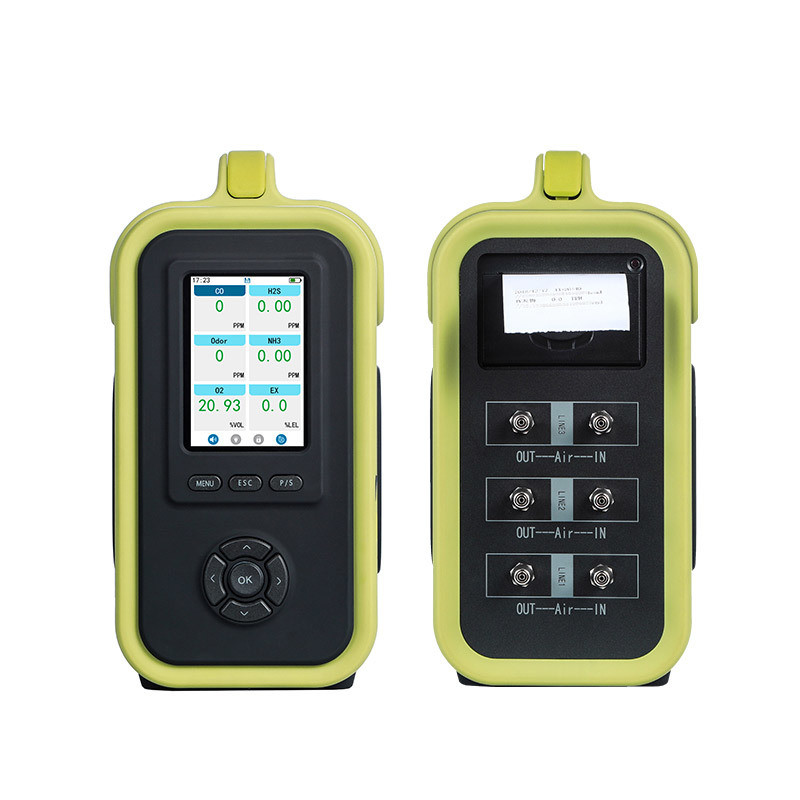

Modular Internal Structure
Industry-first analytical instrument with patented modular internal structure. Up to three detection modules, each capable of detecting up to six gases. Independent modules with separate air intake effectively avoid cross-interference between gases for more accurate detection.
High Customizability
Up to 18 sensors can be selected to meet requirements for simultaneous detection and analysis of 18 gases. Customizable flue gas detection measuring up to 9 gases simultaneously.
Flexible Multi-Pump System
Air supply system with up to three pumps allows arbitrary pump switching, blocking cross-gas loss to relevant sensors to prolong sensor service life. Adjustable pump flow rate across ten different gears to meet different space environments and ensure accuracy.
Multiple Display Modes
Supports gas concentration data display and real-time curve display modes with arbitrary switching between modes.
Comprehensive Data Storage
Standard 8G SD memory card with continuous storage up to seven years at 5-second intervals. Historical data and curves viewable directly on instrument or exported via USB flash drive. Stored data includes real-time values, alarm values, maximum and minimum values, viewable by date.
Multiple Security Protection
Fall alarm function for underground worker safety (optional). Password protection prevents unauthorized parameter modification. Safety alert features for comfortable operation. High and low alarm lock function captures sudden gas concentration changes.
User-Friendly Features
Supports PPM/mg/m³ gas unit switching with automatic concentration conversion. Factory reset capability for each channel sensor. Chinese/English language switching. Timed shutdown function with intelligent settings. Sensor overload automatic protection. Built-in thermal printer for one-click data printing (optional). Wireless communication for real-time monitoring via computer web client and mobile app (optional). Optional high-temperature sampling probe up to 1200°C (optional).

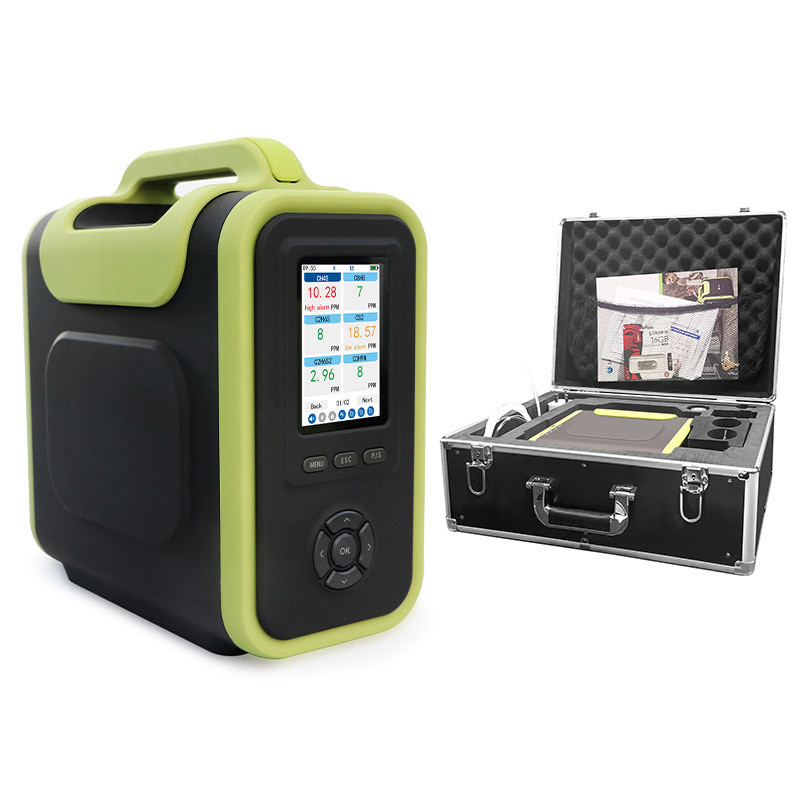

Accessories Configuration
Standard Accessories:
  • User manual
  • Certificate/warranty card
  • 8G large capacity SD card (larger capacity available by customization)
  • Charging adapter
  • Water trap filter
  • Intake sampling probe
  • 1000mm hose
  • Non-toxic, odorless, explosion-proof, waterproof, heat-resistant, high-low temperature resistant, corrosion-resistant suitcase
Optional Accessories:
  • Printer (built-in thermal printer)
  • High temperature flue gas detector set
Why Choose Safegas?
  • R&D team experience: over 25 years
  • Company certification: ISO9001, ISO45001
  • Product certification: IECEx (the only one in China), ATEX, CE
  • Delivery: 5-7 days
  • Yearly capacity: 80,000 units
  • Service: Professional sales staff provide 7*24 hours service
Safegas is a company focused on the design, production and sales of environmental monitoring equipment and systems for 16 years. With "gas detector" as the core product, we have completed production lines and solutions for various industries including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, and Household Appliances.
Through 16 years of rapid development, Safegas has become an influential supplier for environmental monitoring equipment and systems in domestic and overseas markets. Our management philosophy emphasizes "Market is orientation. Innovation is motivation. Quality to survival. Development to growth."
With friendly, open, and strict corporate culture and standardized management, Safegas gathers talented professionals and builds strong management and R&D teams. All staff cooperate effectively in product development, production, and maintenance, with deep understanding of "customer-oriented" concepts and service spirit throughout company operations to earn customer trust and support.
Leveraging years of measurement experience and Safegas solutions through independent R&D, cooperative development, and learning overseas latest technology, our products are domestically advanced and competitive with international brands. We continuously seek development and progress to meet diversified customer demands.
