SKY3000 Portable VOC Gas Detector With 0–1000ppm Range, 1ppm Resolution, And Pump+Diffusion Dual Mode, Large Rotatable Display

Professional-grade portable gas detector designed for volatile organic compound (VOC) monitoring with PID technology. Features dual sampling modes and advanced display capabilities for industrial safety applications.

A rugged, IECEx/ATEX certified portable gas detector with built-in pump for VOC monitoring. Measures 0–1000ppm with 1ppm resolution using a PID sensor. Features pump + diffusion dual mode, IP67 waterproof/dustproof, 3 meter drop resistance, man down alarm, 100,000 data logs (export via USB), and triple alarm (95dB buzzer + flashing red LED + vibration). Optional wireless (LoRa/Bluetooth) and docking station (DKS-3000) for automated testing. Ideal for industrial hygiene, leak detection, and confined space entry.

The SKY3000 is a high performance portable gas detector certified to IECEx, ATEX, and EMC standards. It uses a built in pump for active sampling but can automatically switch to diffusion mode in case of pump failure or special emergency, providing an extra layer of safety. The detector measures up to 6 gases simultaneously (standard 4 in 1: CO/H₂S/O₂/LEL, with VOC as an option).

Taking VOC (Volatile Organic Compounds) as an example, the SKY3000 employs a PID (Photoionization Detector) sensor to measure concentrations from 0–1000ppm with a resolution of 1ppm. Response time (T90) is ≤30 seconds, and precision ≤ ±2% FS.

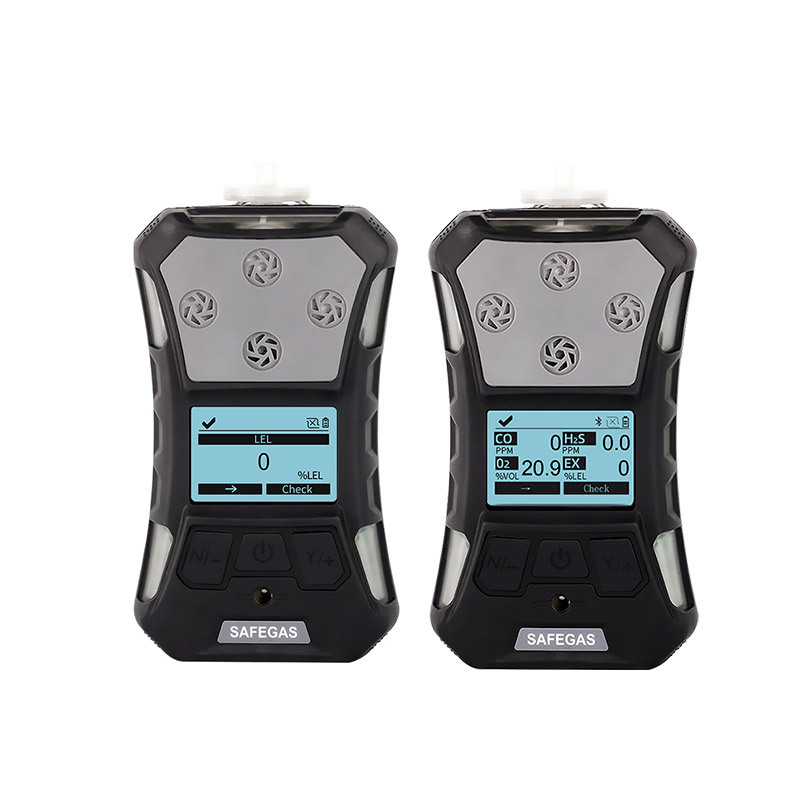

The large graphical LCD (160×96) can be rotated 180° for easy reading in any orientation. Backlight turns on automatically during alarms.

Data logging is standard: 100,000 records with adjustable interval (5–3600 seconds). Data can be exported to a PC via USB without any software – the detector appears as a removable drive.

The detector includes a standard water trap filter to protect the pump and sensor from moisture and dust. A man down alarm enhances lone worker safety. Optional LoRa or Bluetooth wireless modules enable remote real time monitoring, and the DKS 3000 docking station automates bump testing, calibration, and data management.

Powered by a 2200mAh rechargeable lithium battery, the SKY3000 runs for >15 hours in continuous pumping mode (charging time ≥4 hours). With IP67 protection and 3 meter drop resistance, it is built for the harshest job sites.

VOC stands for Volatile Organic Compounds – hundreds of chemicals that evaporate at room temperature (e.g., benzene, toluene, xylene, formaldehyde, gasoline vapors). Sources include paints, solvents, fuels, adhesives, and industrial emissions. Short term exposure can cause eye/nose/throat irritation, headaches, and nausea; long term exposure may lead to liver/kidney damage or cancer. PID sensors detect a wide range of VOCs with high sensitivity, making them ideal for leak detection, confined space entry, and industrial hygiene monitoring.

• Dual sampling mode – Pump suction + diffusion; auto switch protects against pump failure.
• Rugged & durable – IP67 waterproof/dustproof, 3 meter drop resistant, EMC anti static tested.
• Man down alarm – Standard, enhances lone worker safety.
• PID sensor for VOC – Fast response, wide range (0–1000ppm, 1ppm resolution).
• Large rotatable display – 180° flip for easy reading in confined spaces.
• Standard data logging – 100,000 records, export via USB – no driver/software required.
• Triple alarm – 95dB buzzer, flashing red LED, vibration – with alarm latching.
• Long battery life – >15 hours continuous pump operation.
• Optional wireless – LoRa or Bluetooth for remote real time data access.
• Docking station ready – DKS 3000 automates bump tests, calibration, and data export.

• Petrochemical & chemical plants – Leak detection, maintenance turnaround.
• Confined space entry – Tanks, vessels, sewers.
• Industrial hygiene – Worker exposure monitoring.
• Environmental site assessment – Soil vapor intrusion, spill investigation.
• Paint & coating facilities – Solvent vapor monitoring.
• Pharmaceutical manufacturing – Residual solvent checks.
• Fire & hazmat response – Post fire off gas screening.
• Refineries & fuel storage – Hydrocarbon vapor detection.

Shenzhen YuanTe Technology Co., Ltd. (brand: Safegas) was established in 2010 and specializes in the R&D, manufacturing, and sales of gas detection equipment and integrated systems. With over 16 years of industry expertise, the company serves sectors including oil & gas, chemicals, environmental protection, electronics, municipal engineering, agriculture, and household appliances. All products are manufactured under ISO9001 and ISO45001 management systems, holding international certifications such as IECEx, ATEX, and EMC. With an annual production capacity of over 80,000 units, YuanTe Technology supplies gas detection solutions to customers worldwide.

• Established since 2010 – Over 16 years of experience in gas detection R&D and manufacturing.
• Full product range – Portable detectors, fixed transmitters, analyzers, control panels, docking stations, and accessories.
• International certifications – IECEx, ATEX, EMC certified for hazardous areas (including coal mines).
• Wide gas & industry coverage – Hundreds of gases, serving oil & gas, chemical, mining, environmental, food, pharma, and more.
• Strong R&D & quality – ISO9001 & ISO45001 certified, with a professional R&D team and global service network.
• High production capacity – Over 80,000 units per year with fast delivery (5–7 working days typical).
• Global customer support – 24/7 after-sales service and solutions tailored to diverse industries.
