IP68 Dustproof Gas Detector For Flammable Vapor And Carbon Monoxide Leak Safety Warning
Product Overview
Portable multi model LEL CO gas detector with bump test and calibration. MicMeta is a multi-gas detector that has been certified by IECEx, ATEX, and EMC. It's lightweight with small size. The standard gas type is multi 4 (CO H2S O2 LEL) gases and also supports hundreds of selectable gases. Features standard mandown alarm and data logging function, with optional Lora and Bluetooth wireless data transmission for easy data access.
Product Specifications
| Sampling method |
Diffusion |
| Gas type |
LEL CO |
| Measure range |
0-100%LEL CO 0-1000PPM |
| Resolution |
1%LEL 1PPM |
| Response time |
≤60S (T90) |
| Precision |
≤±5%FS or ±10% (depends on the specific sensor) |
| Language |
Chinese/English |
| Automatically test and calibrate after power-on |
Including auto-test, calibration, auto-zero, maximum value (MAX), minimum value (MIN), STEL, TWA value |
| Unit |
PPM and mg/m³ can be switched and displayed by one key, and the concentration value is automatically converted by the system |
| Display |
Segment code LCD display |
| Calibration platform |
Modification, function testing and calibration operations can be performed on DKM-MicMeta docking station (optional) |
| Data record |
1000 sets data records and 100 sets events records |
| Alarm |
95dB buzzer (@30cm), vibration alarm and flashing red bars and alarm status indication on the screen, alarm latched; diagnostic alarm and battery under voltage alarm, man down alarm, alarm set points for all sensors are user adjustable. |
| Battery |
3.7V rechargeable lithium battery, battery capacity 2300mA |
| Working hours |
Standby time 18h, charging time <6h |
| Wireless transmission |
Bluetooth transmission function (optional), Lora transmission function (optional) |
| Explosion-proof grade |
CNEX:Ex ia IIC T4 Ga |
| (EU regulations) |
2004/108/EC(EMC), 94/9/EC(ATEX), CE |
| Protection grade |
IP66/IP68 |
| Working temperature |
-20°C~55°C |
| Humidity |
0-95%RH (non-condensing) |
| Environmental pressure |
86~106Kpa |
| Size |
113*60*32mm (length * width * height) |
| Weight |
200g (with lithium battery) |
Applications
- Natural gas pipeline maintenance combustible gas leakage detection
- Boiler maintenance workshop carbon monoxide poisoning risk monitoring
- Paint spraying workshop flammable gas and toxic gas safety testing
- Gas station fuel leakage on site rapid concentration inspection
- Underground parking enclosed space gas accumulation early warning
- Chemical solvent warehouse flammable toxic gas regular patrol
- And many more applications...

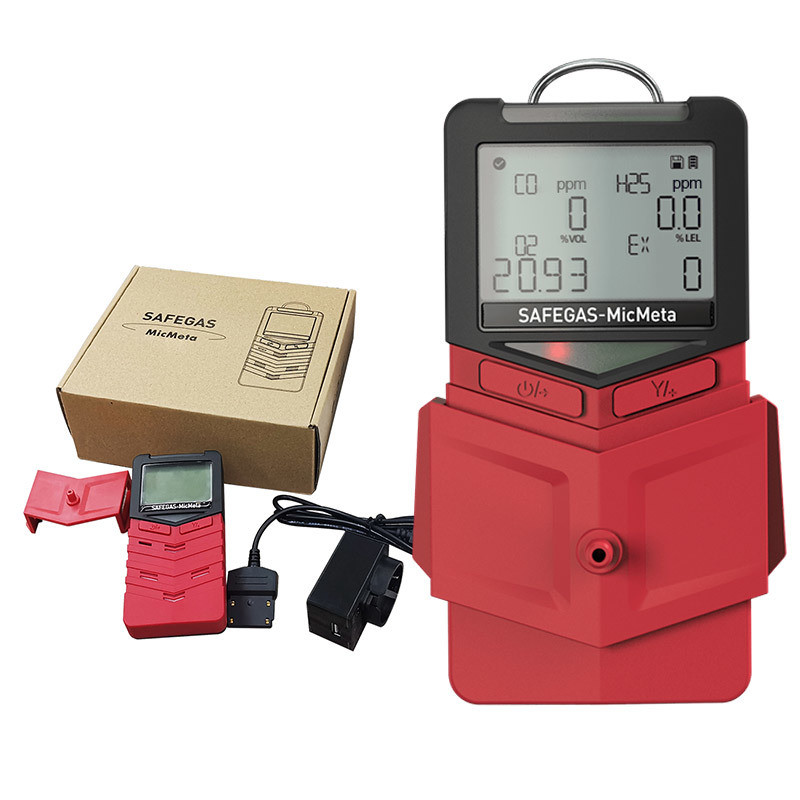

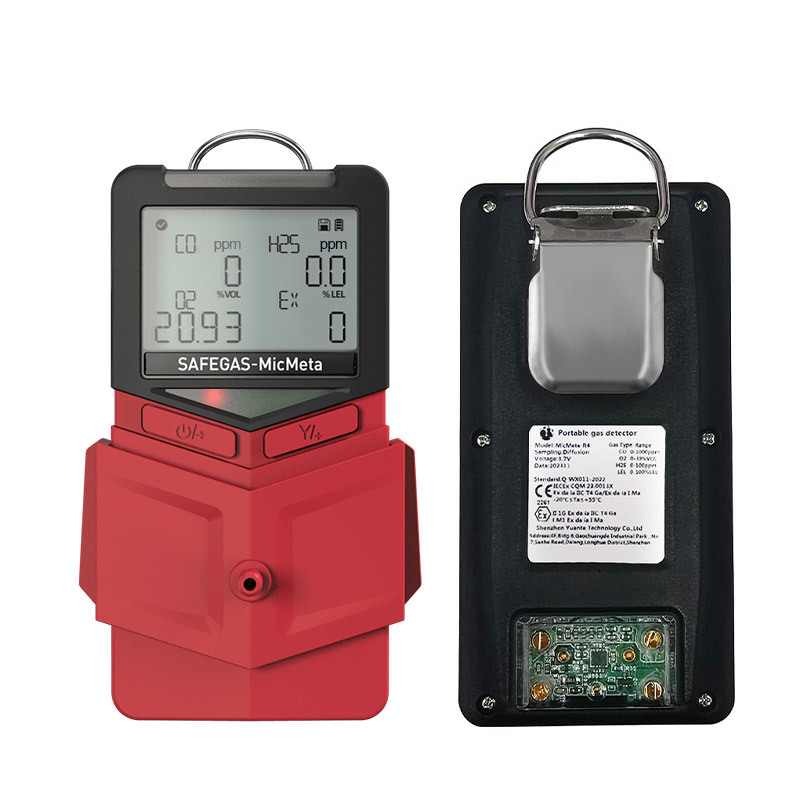

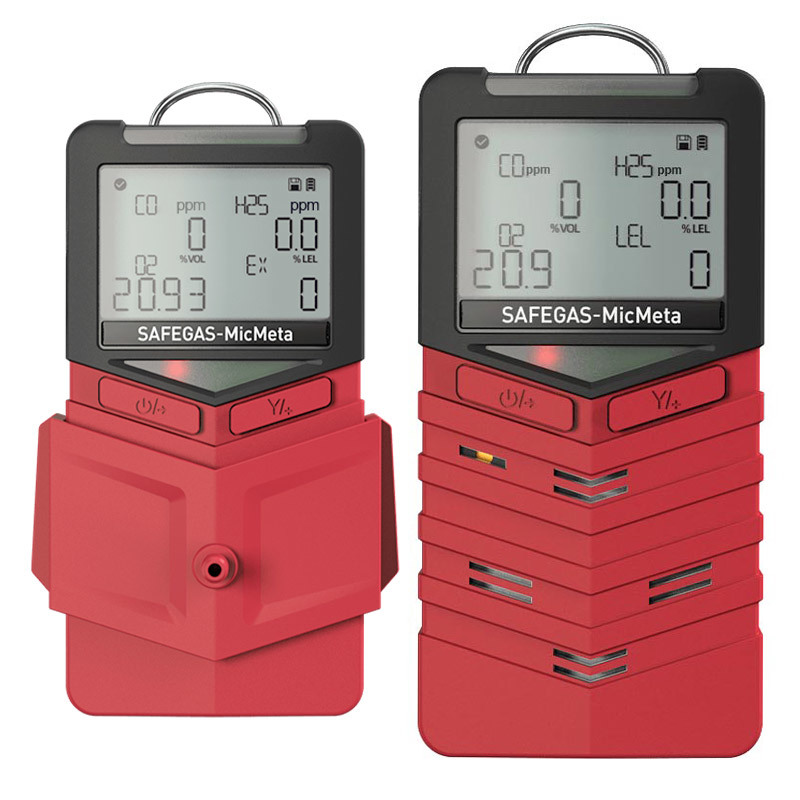

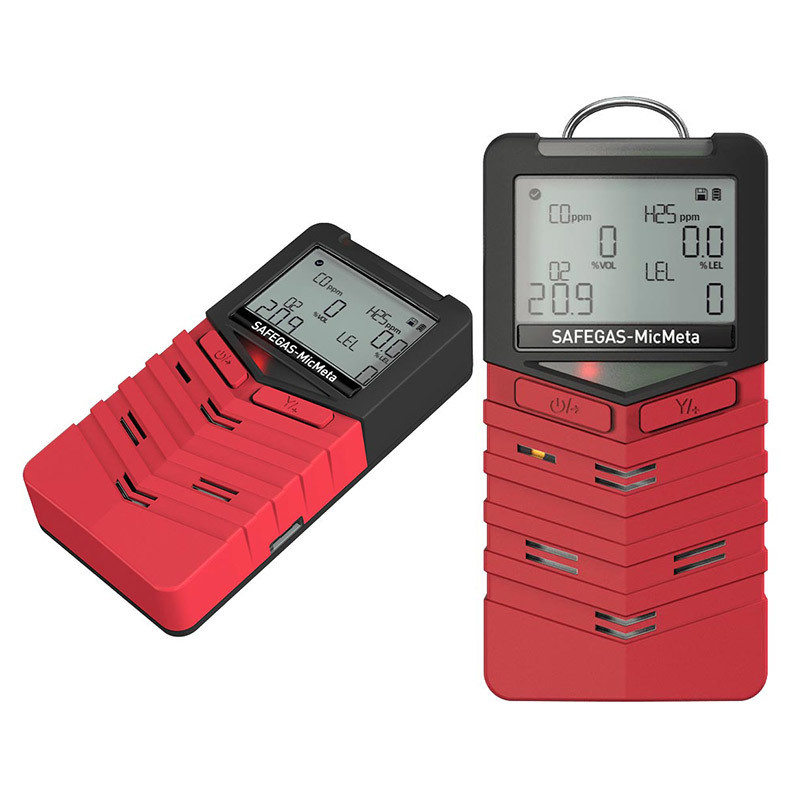

Product Images
Product Advantages
- IP66/IP68 water & dust resistant and 1.5 meters drop resistant case, rugged and durable designs
- Compact, lightweight, small size with back clip, ergonomic and wearable design
- Standard man down alarm, password protection, ID identification function
- Real time value, TWA, STEL, MAX, MIN multiple numerical display
- With self-test function, which can improve safety by automatic self-test
- Standard 1000 data records and 100 events records
- Support firmware upgrade remotely
- With docking station to perform daily bump test and calibration (Optional)
- Wireless data transmission including Lora, Bluetooth (Optional)
- Low power consumption, battery run time is up to 24 hours per charge
